Abrasive Metallurgical Cutting Machine with Cooling Device for Specimen Preparation

Name: Abrasive Metallurgical Cutting Machine with Cooling Device for Specimen Preparation
Brand: SINOWON
Price: 1 USD

Quality Abrasive Metallurgical Cutting Machine with Cooling Device for Specimen Preparation wholesale

Brand Name : SINOWON

Model Number : MC-80

Place of Origin : DONGGUAN CHINA

MOQ : 1 SET

Payment Terms : T/T

Supply Ability : 100 SETS PER MONTH

Delivery Time : 5 DAYS

Packaging Details : PLYWOOD

Power Supply : 380V/50Hz, 3Phase 4Lines

Motor Speed : 2880rpm

Cutting Disc : 250 x 2 x 32mm

Cutting Capacity : 80mm for Cylinder, 100mm for Cube

Contact Now

Abrasive Metallurgical Cutting Machine with Cooling Device for Specimen Preparation

MC-80 is suitable for cutting various metals, non-metallic materials, in order to observe the material metallographic, core organization.

The machine has cooling device so as to take away the heat produced during the cutting. It is easy to use for users. for factories, scientific research institution and colleges and universities lab.

Cutting Materials:

1, Ferrous metals, nonferrous metals

2, Casting, thermal treatment workpieces, forge piece

3, Semi-conductor, ceramic ( must be used with diamond cutting blades)

Abrasive Metallurgical Cutting Machine with Cooling Device for Specimen Preparation

Technical Data:

Technical Specification	MC-80
Order#	711-131
Max. Cutting Diameter	Φ80mm
Grinder Specification	250 x 2 x 32mm
Rotation speed	2800rpm
Motor Specification	3.0kw
Power Supply	3Phase/380V/50Hz
Dimension	720 x 700 x 620mm
Net Weight	194Kg

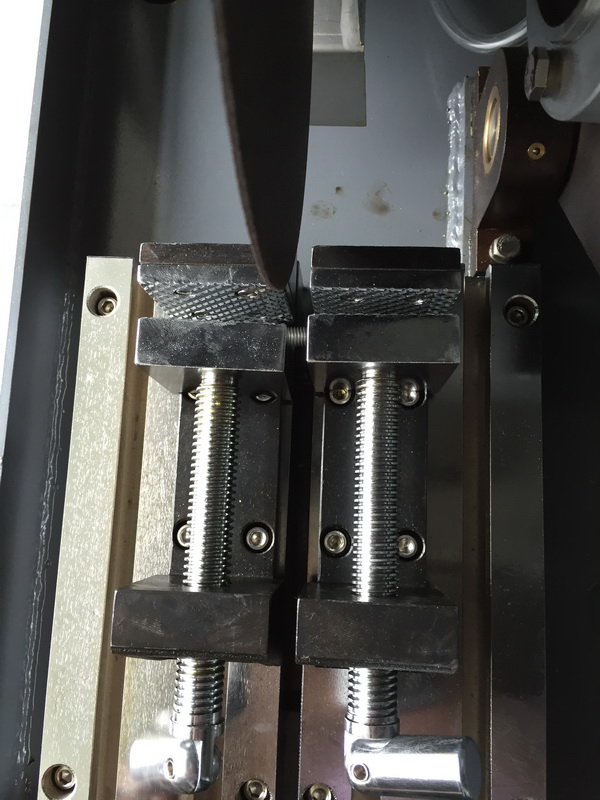

Working Table	“T-slot” Working table, Double-driving Vise
Cooling Sytle	Outside Cooling system

Abrasive Metallurgical Cutting Machine with Cooling Device for Specimen Preparation

Packing List:

No.	Description	Specifications	Quantity	Notes
1	Cutting machine	Model MC-80	1 set
2	Water tank		1 pc.
3	Abrasive disc		1 pc
4	Out-let water pipe		1 pc.
5	In-let water pipe		1 pc.
6	Pipe clamper	φ22-φ32	2 pcs.
7	Spanner	36mm	2 pc.
8	Operation Instruction		1 pc.
9	Certificate		1 pc.
10	Packing list		1 pc.

Abrasive Metallurgical Cutting Machine with Cooling Device for Specimen Preparation

Product Tags:

Grinding and Polishing Machine

Grinder Polisher
